MCU Series POE Switch

MCU Series POE Switch

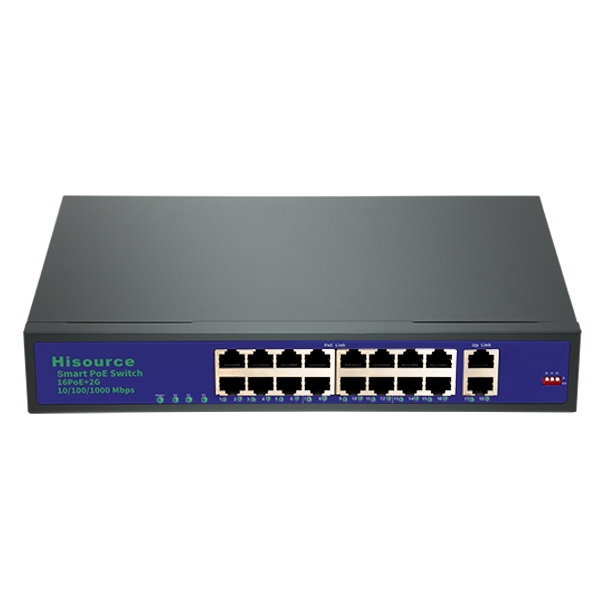

16+2 Port 250m Long Distance POE Switch (Built-in)

16*10/100Mbps RJ45 portsupport POE+

2*10/100/1000Mbps RJ45 uplink port

The whole power is 250Weach port max. power supply reached 30W

Support 250m long distance transmission,

Standard Switching Mode,

VLAN,

The POE port supports the priority mechanism.

    Hi-F1620GBL-A POE Switch is designed and developed by our company. It can meet the demand of POE. It uses the latest high-speed Ethernet switching chip, has ultra-high backplane bandwidth design, and has extremely fast data processing capability and smooth data transmission performance. It has 16* RJ45 port2*RJ45 1000Mbps uplink port. Each port max. power supply reached 30W, the whole power is 250W. It can automatically detect and identify PD device that meet the IEEE 802.3af/at, support the priority mechanism.

    Excellent port performance

    l  Supply 16*10/100Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port.

    l  Supply 2*10/100/1000Mpbs RJ45 uplink port.

    l  All ports supported by MDI/MDIX auto flip and self-negotiation. Support IEEE802.3X Full-duplex and backpressure for half-duplex mode.

    Excellent POE power supply performance

    l  16* 10/100Mpbs RJ45 port support POE+meets the requirements for security monitoring, teleconference system, and wireless coverage.

    l  Detect the PD devices automatically and supply the power without damaging non-POE devices.

    Two modes of operation

    l  Normal Mode ----All ports communicate freelysuitable for common data transmission environment.

    l  Long distance transmission mode--- Support 250m long distance transmissionsuitable for long distance transmission.

    Network Standard

    IEEE 802.3IEEE 802.3uIEEE 802.3x

    Port

    16*10/100Mbps RJ45 port

    2*10/100/1000Mbps RJ45 uplink port

    POE Power

    16*10/100Mbps RJ45 port support POE+

    The whole power is 250W

    Each port max. power supply reached 30W

    POE Connection

    Both1/2+3/6- and 4/5+7/8-

    End-span

    250M TransmissionManually Open

    Performance

    Store and forward

    MAC address table 2k

    Switching capacity12Gbps

    Forwarding Rate

    10BASE-T:14880PPS/port

    100BASE-tx148800pps/port

    1000BASE-tx1488000pps/port

    Port Function

    Power priority mechanism, fast and forward, MAC automatic

    learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

    Environment

    Operating Temperature-10℃ - -55℃

    Power

    Built in power base board

    Input220V50HZOutputDC52V±5% 4.8A

    250W

    Weight &Size

    2.1KG

    270mm×180mm×44mm(L×W×H)
